UGR＜19 LED Panel
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Lifetime 50,000 hours
- CRI: 80, IP40, low glare UGR<19
- Luminous efficacy 100 lm/W, 120 lm/W optional
- Driver: Philips, flicker free
- LGP Material: PMMA
- CCT: 3000 / 4000 / 6000K
Specifications

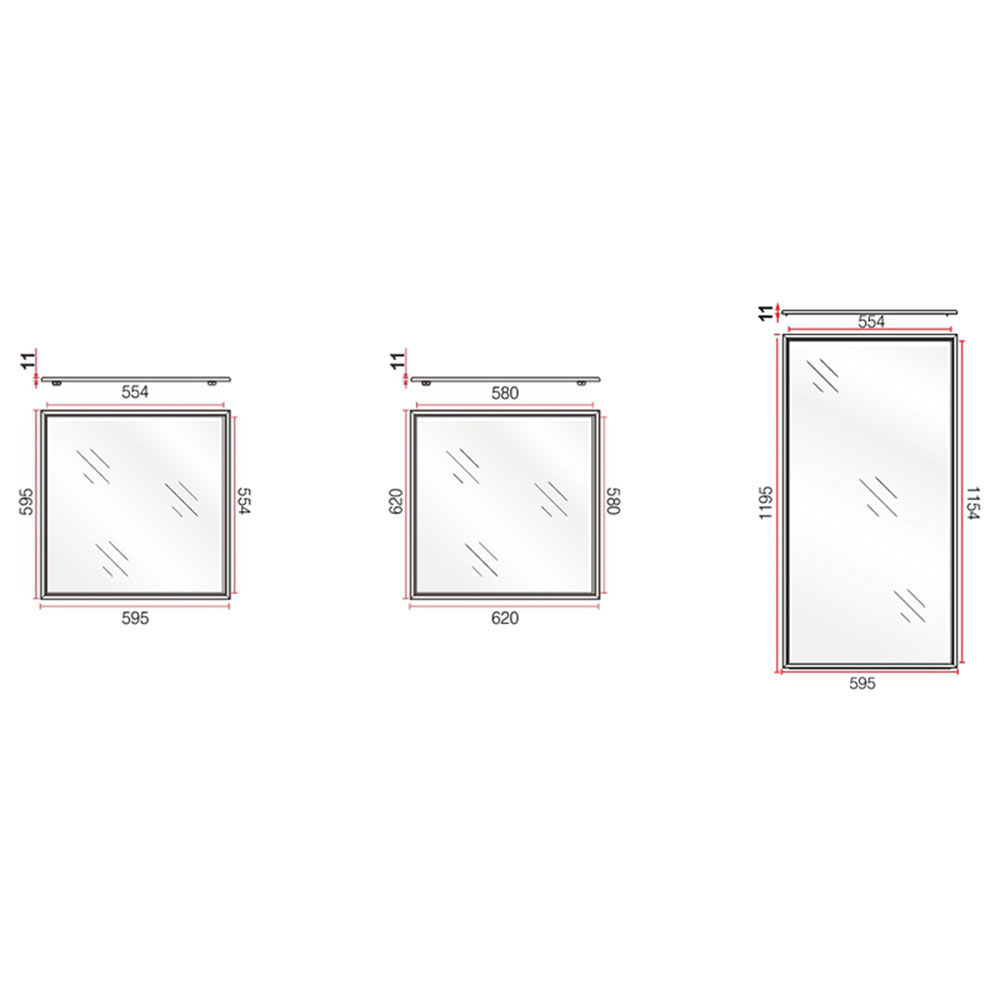

| Model | Power (W) | Size (mm) | Efficiency (lm/W) | Driver | LGP Material | UGR | CRI (Ra) | CCT (K) | Beam Angle | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-6060-40W(UGR) | 40 | 595×595×10 | 100 | PHILIPS | PMMA | <19 | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-30120-40W(UGR) | 40 | 295×1195×10 | 100 | PHILIPS | PMMA | <19 | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-6262-40W(UGR) | 40 | 620×620×10 | 100 | PHILIPS | PMMA | <19 | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-6060-40W(UGR) | 40 | 595×595×10 | 120 | PHILIPS | PMMA | <19 | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-30120-40W(UGR) | 40 | 295×1195×10 | 120 | PHILIPS | PMMA | <19 | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-6262-40W(UGR) | 40 | 620×620×10 | 120 | PHILIPS | PMMA | <19 | 80 | 3000 4000 6000 | 120° | IP40 |
