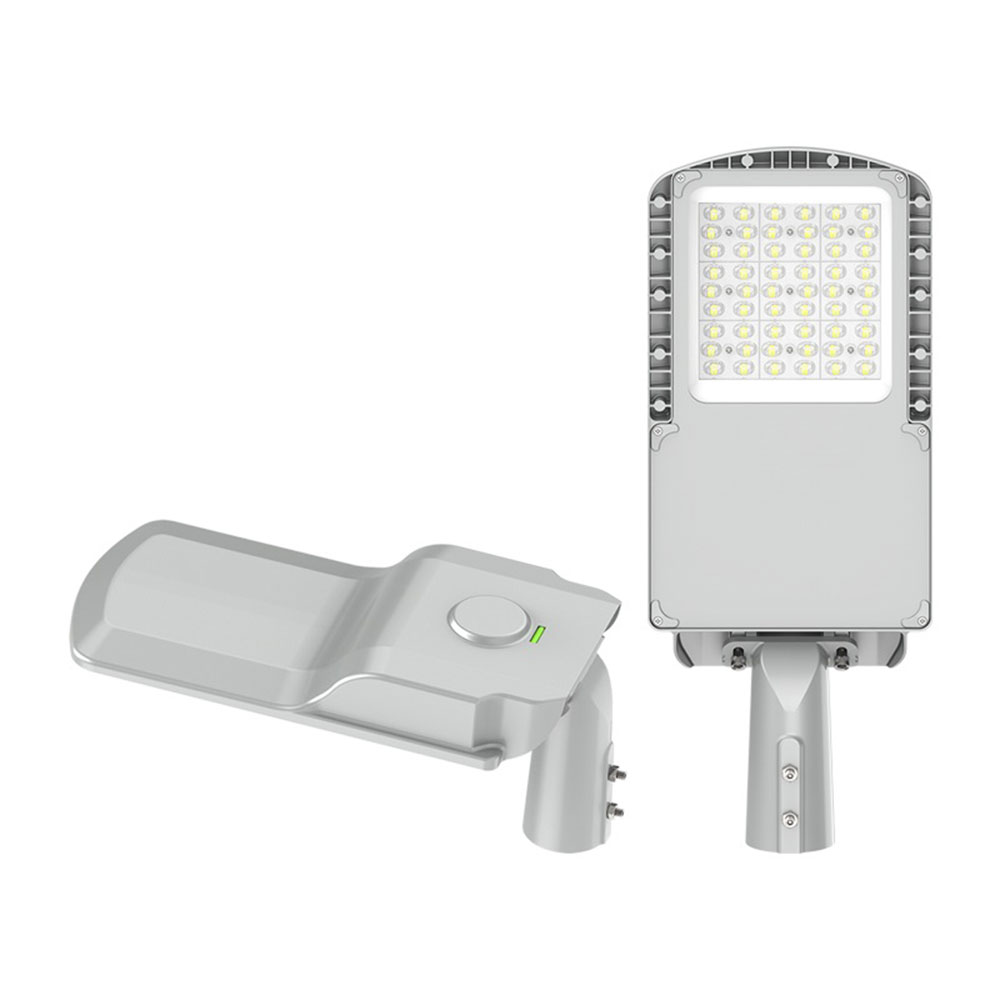

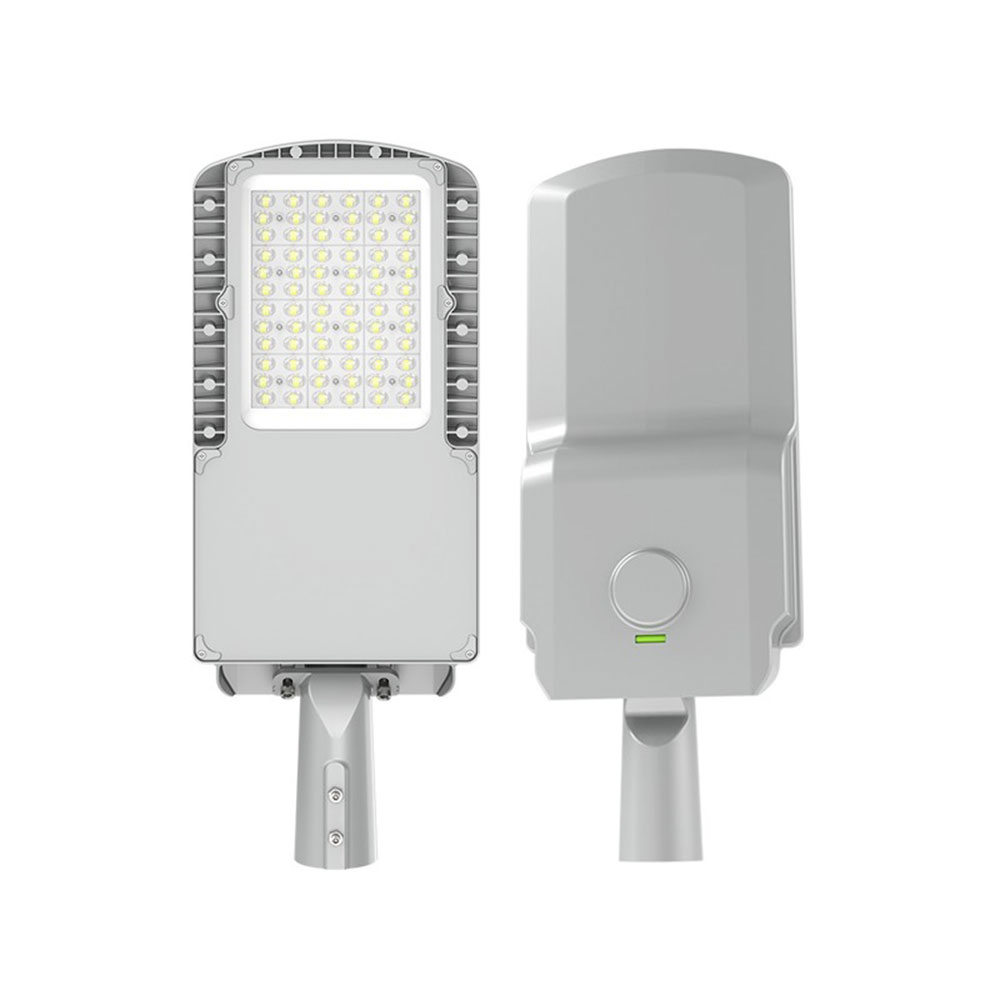

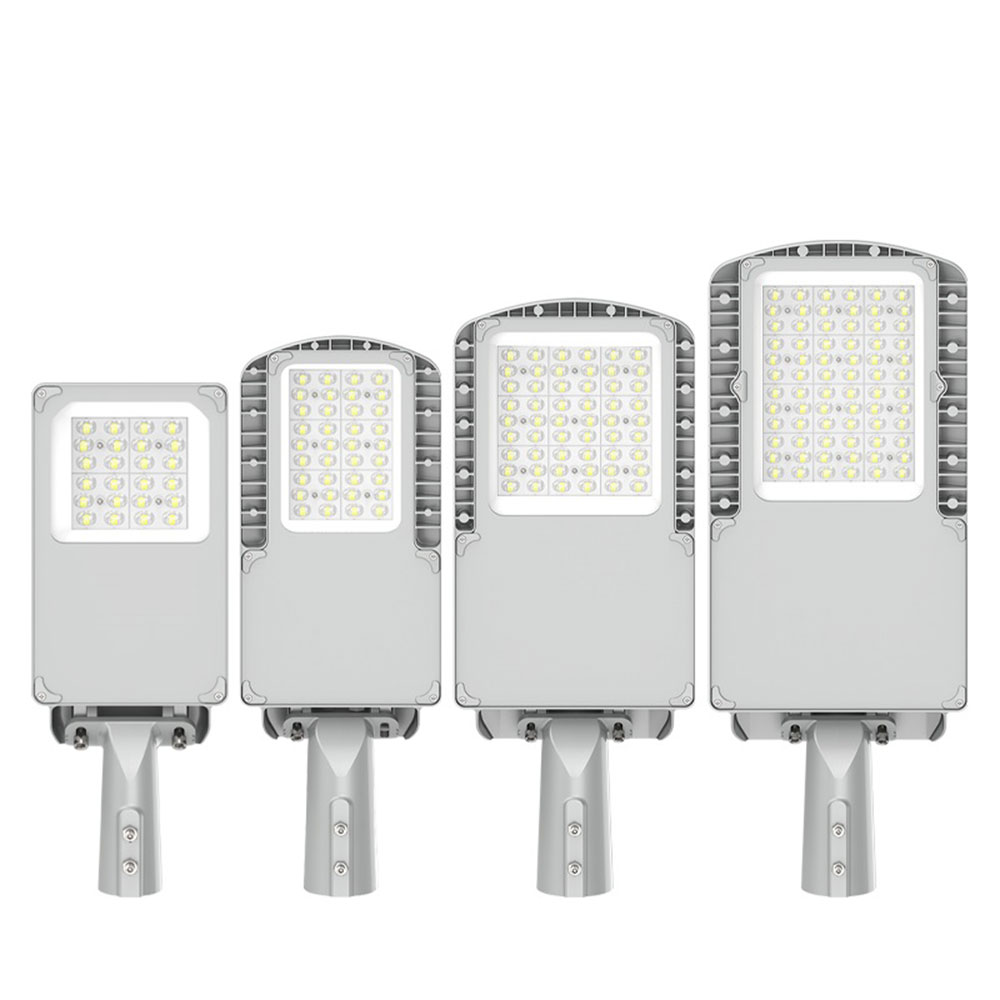

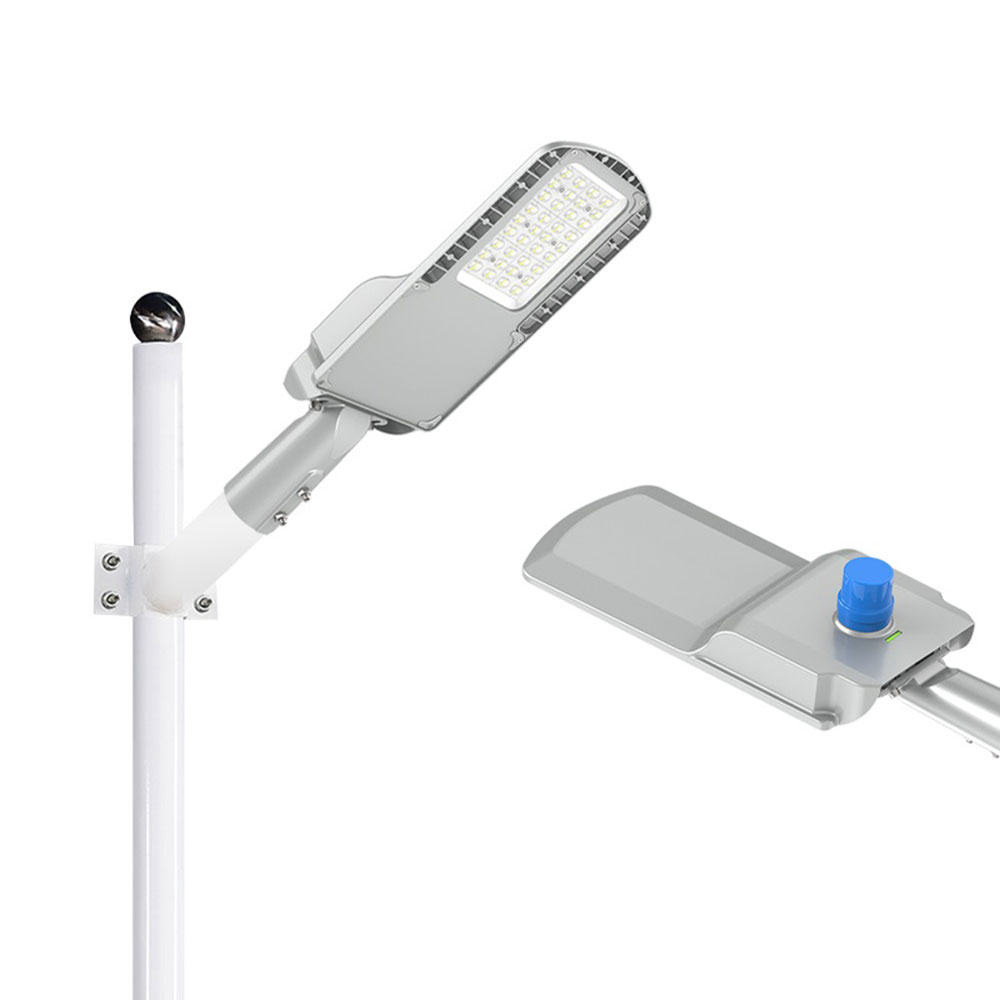

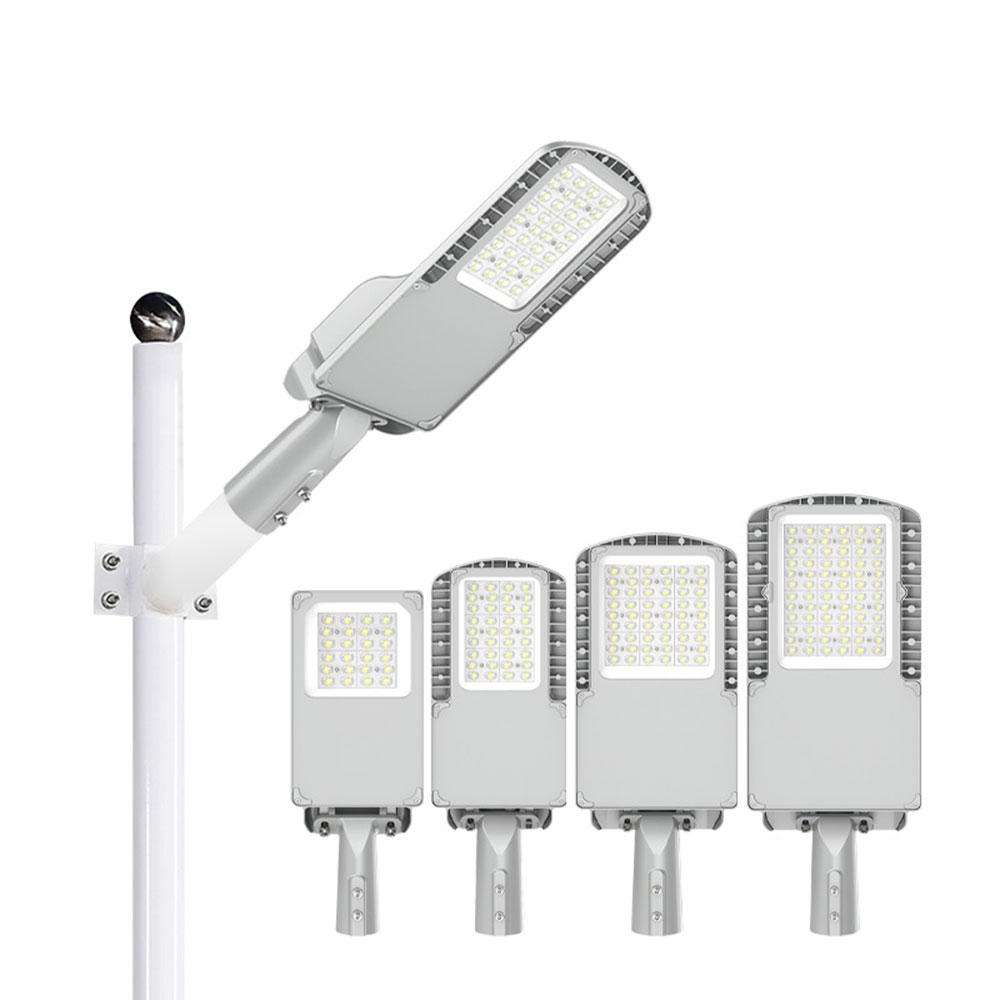

LED STWE Series
Industry Lighting
Features
- Low consumption; more than 80% saving of the power
- Long lifetime 50,000 hours
- Aluminum housing, IP65
- Luminous efficacy 130 lm/W
- Driver: Hahga, LED: Bridgelux
- CRI: 80 Ra, CCT: 2700–6500K
- Beam Angle: 60° / 90° / 120°, T2M / T3M / T4M
Specifications
| Model | Power (W) | Size (mm) | Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | CCT (K) | IP Class | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-STWE-50W | 50 | 463×173×87 | 130 | AL | Hahga | Bridgelux | 80 | 2700–6500 | IP65 | 60° / 90° / 120° / T2M / T3M / T4M |
| LU-STWE-75W | 75 | 570×200×110 | 130 | AL | Hahga | Bridgelux | 80 | 2700–6500 | IP65 | 60° / 90° / 120° / T2M / T3M / T4M |
| LU-STWE-100W | 100 | 611×240×111 | 130 | AL | Hahga | Bridgelux | 80 | 2700–6500 | IP65 | 60° / 90° / 120° / T2M / T3M / T4M |
| LU-STWE-150W | 150 | 680×260×111 | 130 | AL | Hahga | Bridgelux | 80 | 2700–6500 | IP65 | 60° / 90° / 120° / T2M / T3M / T4M |
| LU-STWE-200W | 200 | 693×300×111 | 130 | AL | Hahga | Bridgelux | 80 | 2700–6500 | IP65 | 60° / 90° / 120° / T2M / T3M / T4M |
