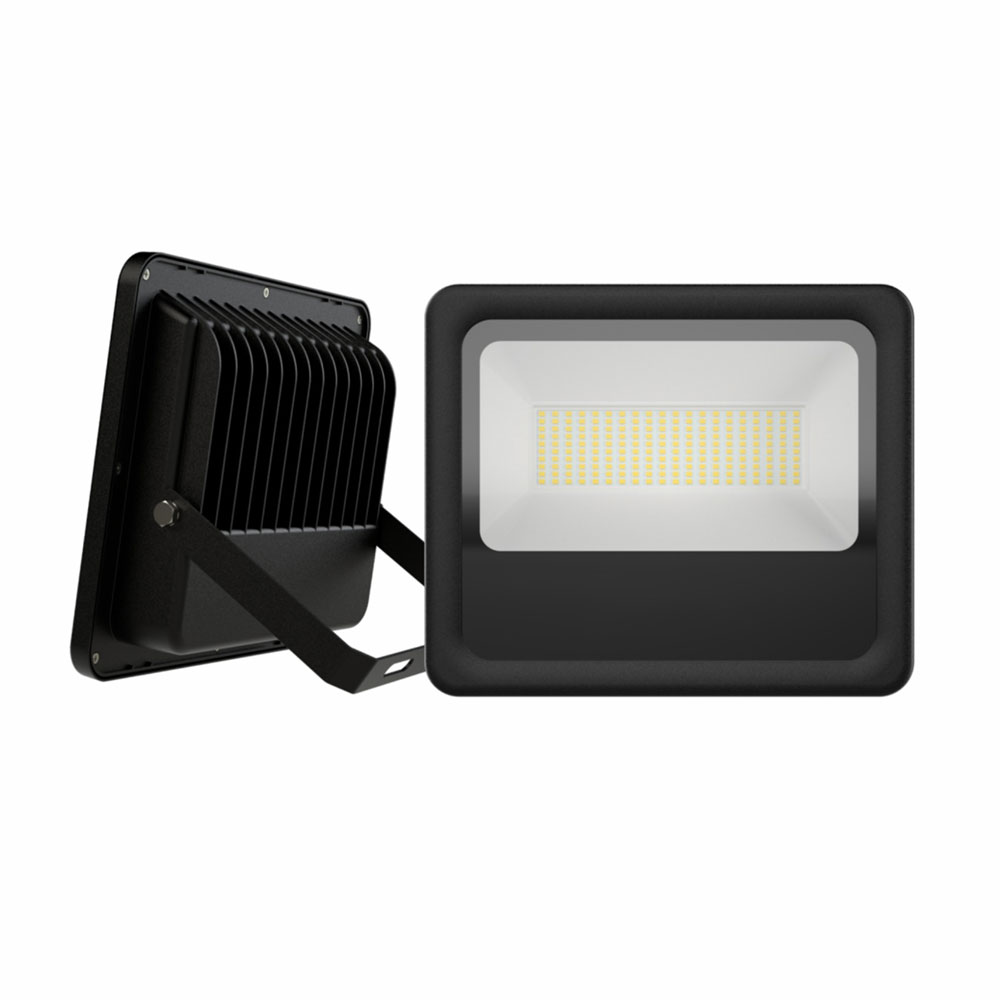

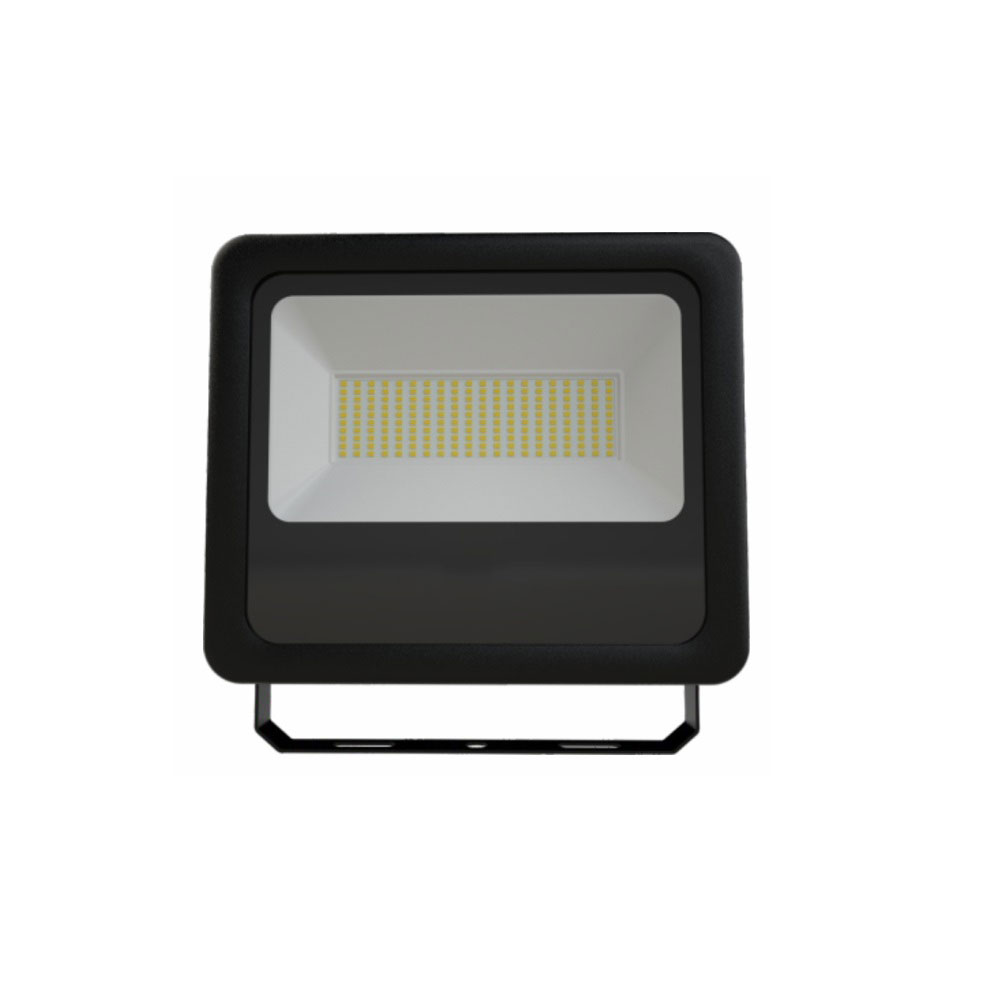

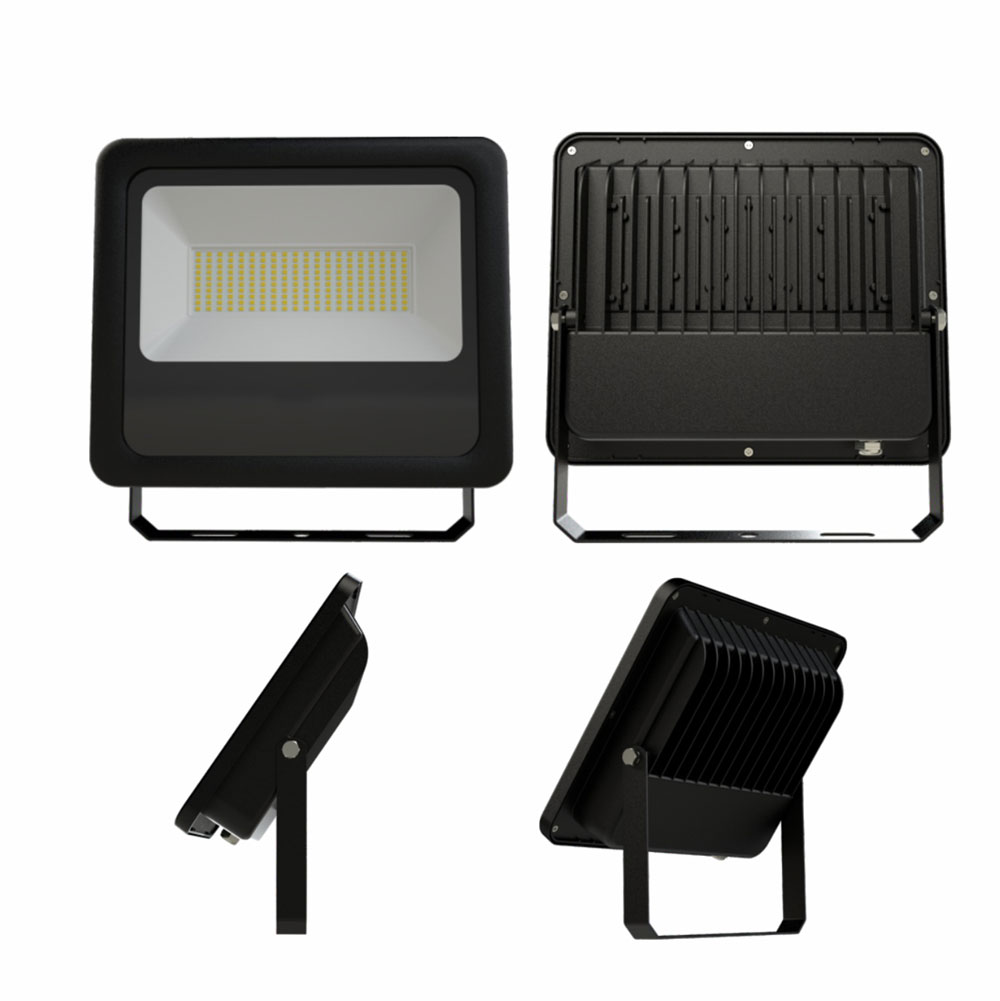

LED Flood Light FLE series
Industry Lighting
Features
- Luminance uniformity of emitting surface over 90%
- Low consumption, long lifetime
- Model: LU-FLE series, Power: 10–500W
- Luminous Flux: 1000–60000 lm
- Material: Aluminum
- CRI: >70 / 80, CCT: 2700–6500K
- IP66, IK10
- Beam Angle: 90° / 120°
- Optional: Photocell, Motion sensor, 0–10V, DALI
Specifications

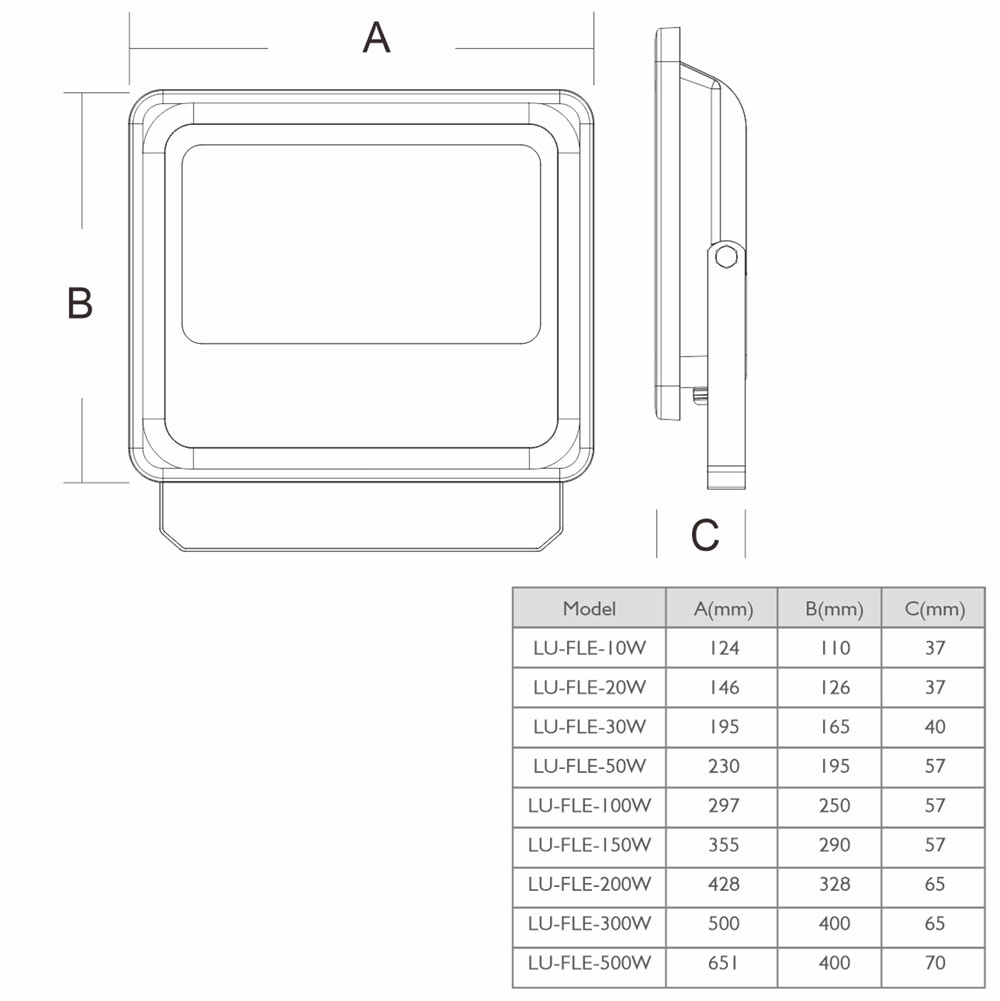

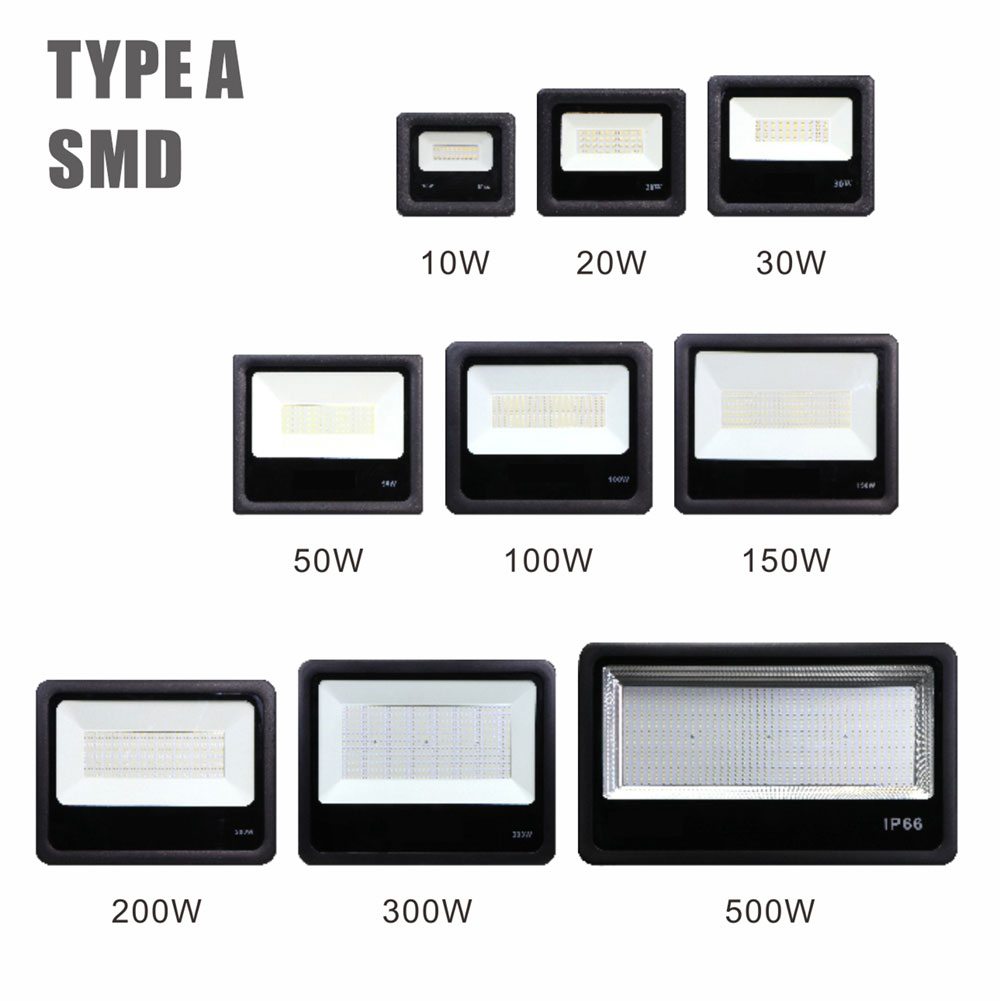

| Model | Power (W) | Size (mm) | Luminous Flux (lm) | Material | Driver | CRI (Ra) | CCT (K) | IP Class | Beam Angle | Optional |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-FLE-10W | 10 | 124×110×37 | 1000 / 1200 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-20W | 20 | 146×126×37 | 2000 / 2400 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-30W | 30 | 195×165×40 | 3000 / 3600 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-50W | 50 | 230×190×57 | 5000 / 6000 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-100W | 100 | 297×250×57 | 10000 / 12000 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-150W | 150 | 355×290×57 | 15000 / 18000 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-200W | 200 | 428×328×65 | 20000 / 24000 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-300W | 300 | 500×400×65 | 30000 / 36000 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
| LU-FLE-500W | 500 | 651×400×70 | 50000 / 60000 | Alu. | Hahga | >70 / 80 | 2700–6500 | IP66, IK10 | 90° / 120° | Photocell, Motion, 0–10V, DALI |
